Salto Grande (Argentina-Uruguay)

State Binacional
CONCORDIA / SALTO
River name Uruguai
sub-basin name
Company name C.T.M. SALTO GRANDE
Latitude 31°16'29"S
Longitude 57°56'17"W
Construction Period 1974-1979
Total installed power(MW) 1890
Destination of Energy
Historical Maximum discharge(m3/s) 37,714 (09/06/92)
Mean discharge (m3/s) 4622
Historical minimum discharge (m3/s) 109 (03/02/45)
Basin area (km2)
maximum operational water level (m)
extreme maximum water level (m)
operational water level (m) 35
minimum operational water level (m)
Total volume (m3) 5500000000
Net volume (m3) 64000000000
Length (km) 140

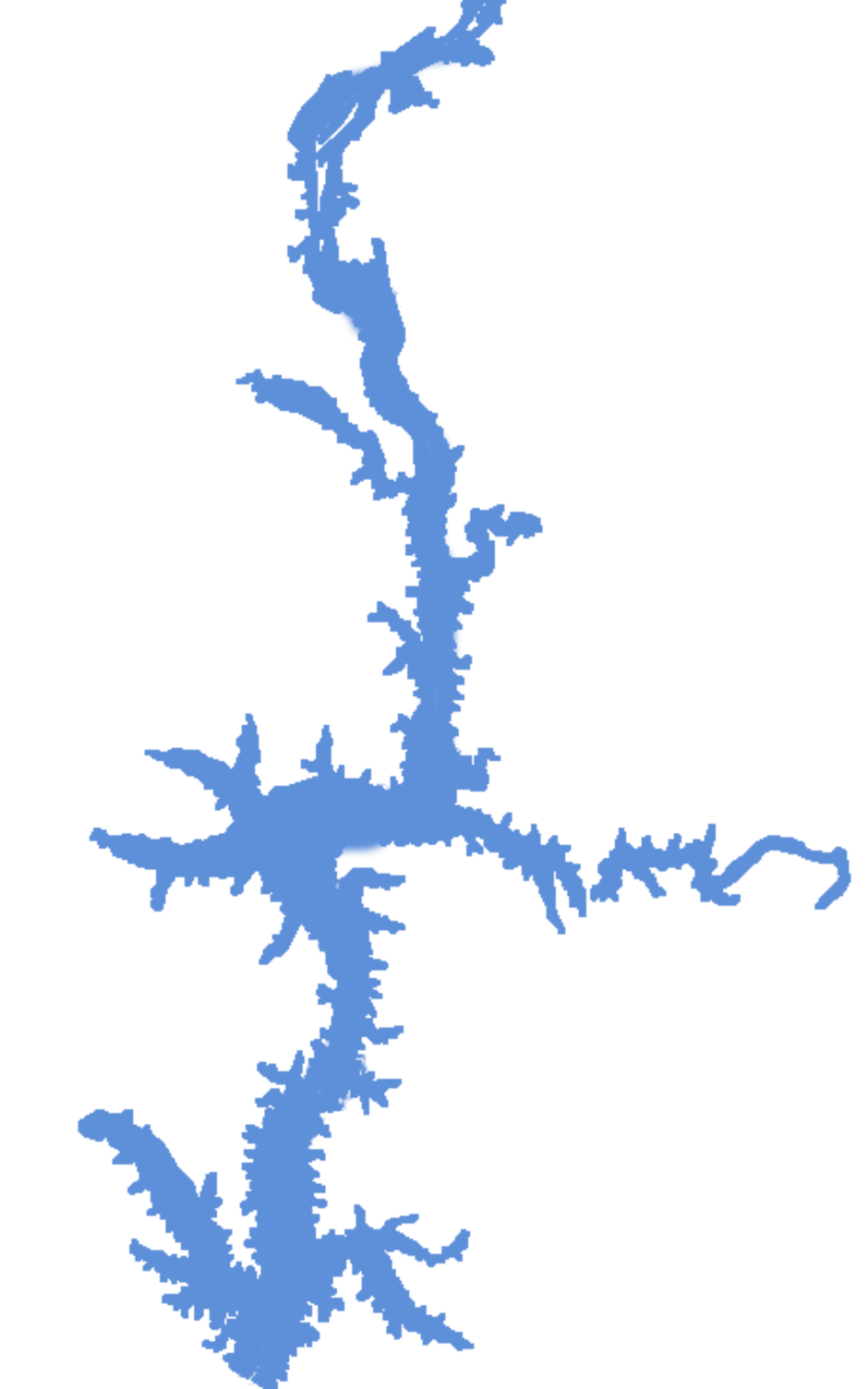

Surface area at normal condition (km2) 783
Downstream water level(maximum) (m)
Downstream water level(normal) (m)
Downstream water level(minimum) (m)
Height of the spillway outlet (m)
Height of the main dam (m) 37
Length of the main dam(m) 3000
Vaciemiento máximo / Capacidad de descarge del vertedor (m3/s)
Tipo CON COMPUERTAS
Número de Compuertas Total
superfície
Base
Largo (m)
Altura (m)
Cota del tipo de ogiva
Longitud de la cresta (m)
Número de unidades instaladas
Potencial nominal (MW) 135
Tipo Kaplan
Ancho Total (m)
Largo Total (m)
Desnível (m)
Referencia www.saltogrande.org/
Otro información Diametro de cada turbina:8,5m,6palas por turbina. Velocidad de rotacion:75rpm.Ancho maximo del embalse:9km
